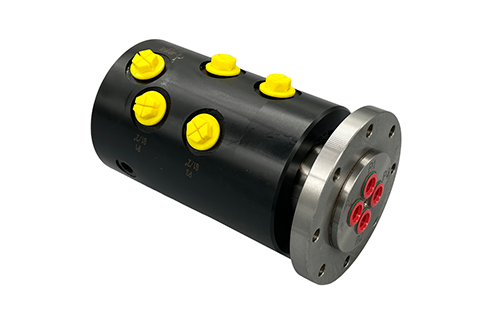

技術特點:
●兩個寬大精密軸承支撐,運轉平穩,軸承終身無需維護;
●進口專用密封件,保證長壽命運轉;
●經特殊處理芯軸保證了足夠耐磨性;
●殼體可由鋁合金、碳鋼、不銹鋼或黃銅制作;
●獨特的排泄孔回流設計,防止泄漏至外部影響環境;
●可根據客戶工況定制專用產品;

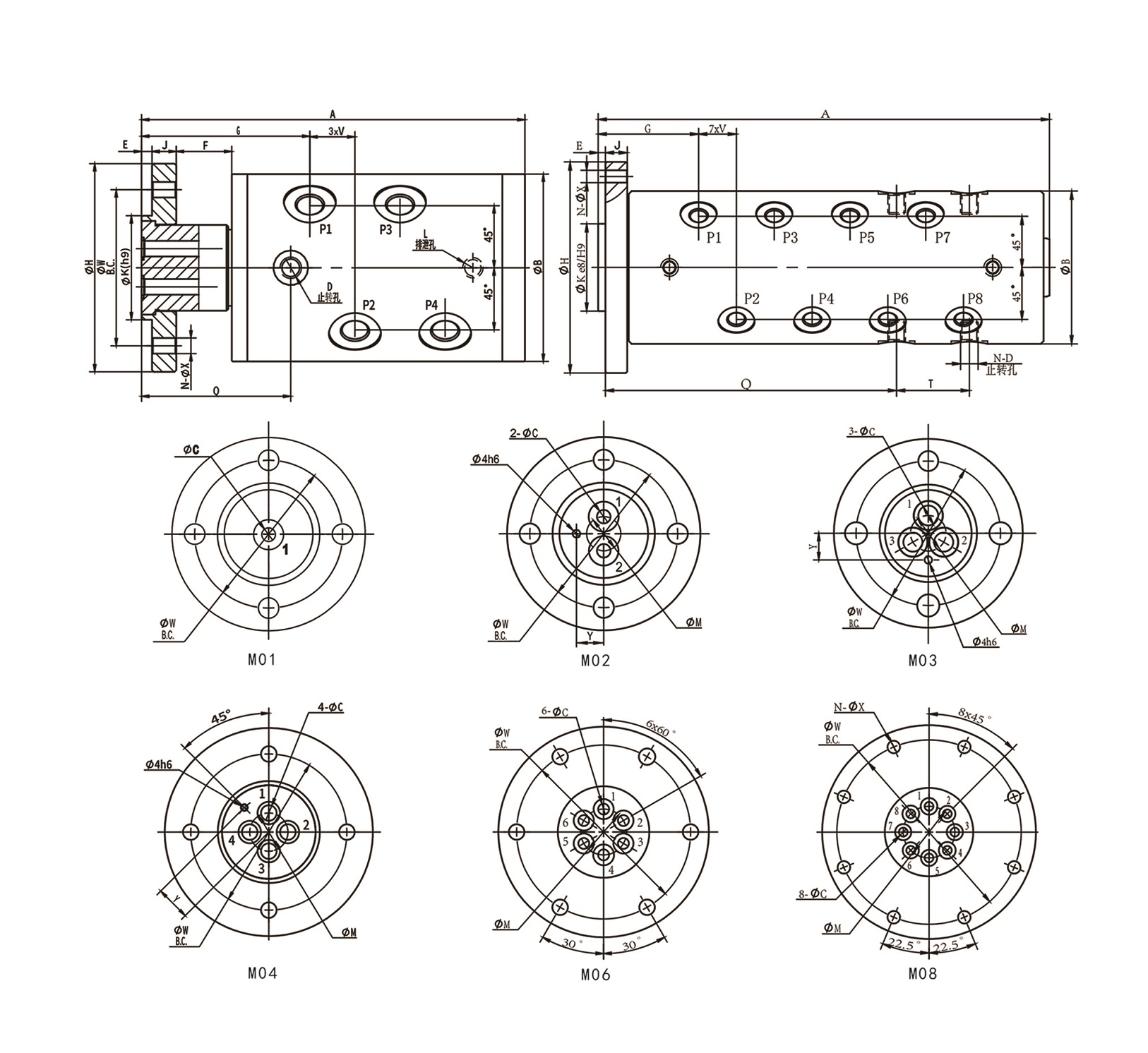

類型 | DN | 訂貨型號 | K | P | A | B | C | M | Q | D | E | F | G | V | H | J | L | N-X | W |
M01 | 15 | M01015 | 40 | G1/2" | 127 | 78 | 13 | / | 70 | 2-M8 | 5 | 30 | 85 | / | 80 | 10 | Rc1/8" | 4-9 | 60 |
20 | M01020 | 45 | G3/4" | 135 | 83 | 16 | 75 | 2-M8 | 5 | 29 | 90 | 85 | 12 | 65 | |||||
25 | M01025 | 45 | G1" | 147 | 90 | 22 | 80 | 2-M12 | 5 | 29 | 98 | 85 | 12 | 65 | |||||
32 | M01032 | 55 | G1-1/4" | 164 | 108 | 30 | 86 | 2-M12 | 6 | 32 | 107 | 110 | 14 | 80 | |||||
M02 | 08 | M02008 | 45 | 2-G1/4" | 145 | 83 | 6 | 14 | 65 | 2-M8 | 5 | 28 | 84 | 22 | 85 | 12 | Rc1/8" | 4-9 | 65 |
10 | M02010 | 45 | 2-G3/8" | 155 | 90 | 9 | 15 | 70 | 2-M12 | 5 | 30 | 91 | 24 | 85 | 12 | 65 | |||
15 | M02015 | 55 | 2-G1/2" | 180 | 108 | 12 | 20 | 76 | 2-M12 | 6 | 32 | 100 | 30 | 110 | 16 | 80 | |||
20 | M02020 | 70 | 2-G3/4" | 225 | 155 | 16 | 30 | 110 | 2-M16 | 5 | 38 | 124 | 36 | 125 | 12 | Rc1/4" | 6-14 | 100 | |
M03 | 08 | M03008 | 45 | 3-G1/4" | 169 | 83 | 6 | 14 | 70 | 2-M8 | 5 | 29 | 86 | 22 | 85 | 12 | Rc1/8" | 4-9 | 65 |
10 | M03010 | 45 | 3-G38" | 177 | 90 | 9 | 16 | 80 | 2-M12 | 5 | 30 | 91 | 23 | 85 | 14 | 65 | |||
15 | M03015 | 60 | 3-G1/2" | 209 | 108 | 12 | 20 | 86 | 2-M12 | 6 | 33 | 100 | 30 | 120 | 12 | 90 | |||
M04 | 08 | M04008 | 45 | 4-G1/4" | 178 | 90 | 6 | 18 | 80 | 2-M12 | 5 | 28 | 86.5 | 18 | 85 | 12 | Rc1/8" | 4-9 | 65 |
10 | M04010 | 60 | 4-G3/8" | 221 | 108 | 9 | 22 | 86 | 2-M12 | 6 | 32 | 97 | 26 | 120 | 14 | 90 | |||
15 | M04015 | 75 | 4-G1/2" | 245 | 115 | 12 | 29 | 91 | 2-M12 | 6 | 31 | 104 | 30 | 130 | 16 | 110 | |||
M06 | 06 | M06006 | 50 | 6-G1/8" | 208 | 78 | 6 | 25 | 85 | 4-M10 | 5 | / | 62 | 20 | 115 | 14 | / | 6-8.5 | 95 |
08 | M06008 | 50 | 6-G1/4" | 232 | 78 | 6 | 25 | 85 | 4-M10 | 5 | 64 | 24 | 115 | 14 | 6-8.5 | 95 | |||
10 | M06010 | 70 | 6-G3/8" | 270 | 105 | 9 | 35 | 170 | 4-M12 | 5 | 70 | 28 | 145 | 15 | 6-8.5 | 125 | |||
15 | M06015 | 80 | 6-G1/2" | 300 | 118 | 12 | 40 | 205 | 4-M12 | 5 | 77 | 32 | 165 | 20 | 6-13.5 | 145 | |||
M08 | 06 | M08006 | 60 | 8-G1/8" | 278 | 105 | 6 | 35 | 175 | 4-M12 | 5 | 67 | 22 | 145 | 15 | 8-8.5 | 125 | ||
08 | M08008 | 60 | 8-G1/4" | 310 | 105 | 6 | 35 | 205 | 4-M12 | 5 | 69 | 26 | 145 | 15 | 8-8.5 | 125 | |||
10 | M08010 | 70 | 8-G3/8" | 330 | 115 | 9 | 45 | 225 | 4-M12 | 5 | 73 | 28 | 155 | 15 | 8-8.5 | 135 |
