設計特點:
?迷宮式密封和導流孔結構可保護軸承
?優化的平衡式密封設計,使摩擦力降到最小
?不銹鋼彈簧處于流道之外,流通面積大,壓力損失小
?碳化硅動密封,增強了韌性和耐沖擊性
?匹配的密封面,所選材料滿足特定工況

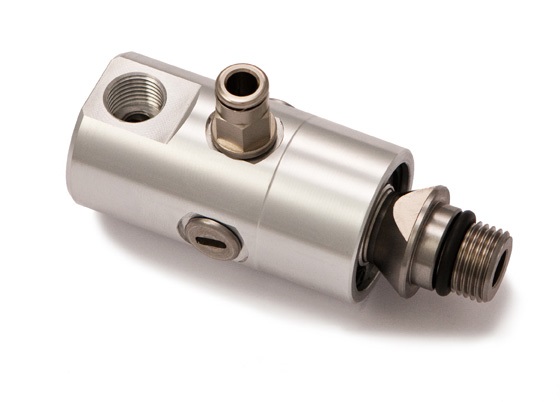

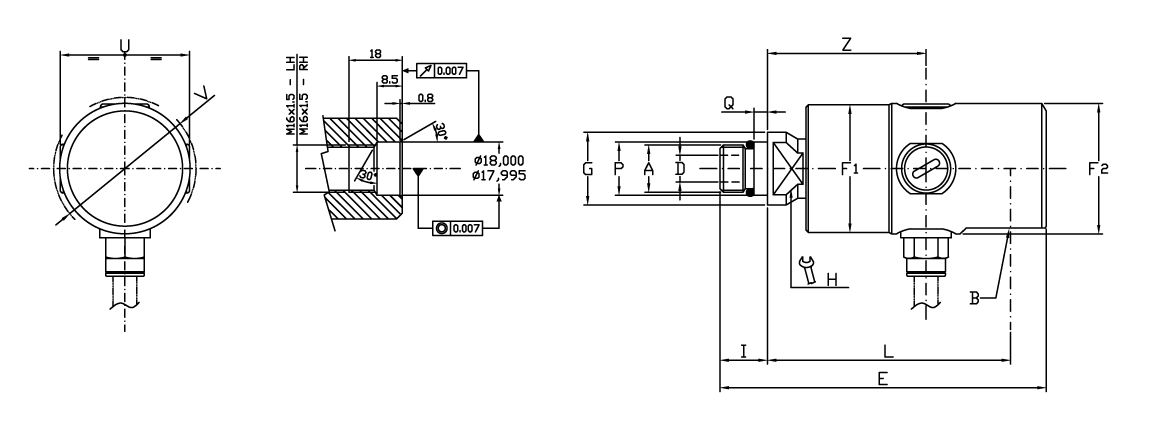

訂貨編碼 | 徑向連接 | |||||||||||||||
A | B | ?D | E | ?F1 | ?F2 | ?G | H | I | L | ?P | Q | U | ?V | Z | Kg | |
GA08-1301-04R | M16×1.5 RH | G1/4" | 5 | 91 | 34 | 34.4 | 24.5 | 17 | 16 | 66 | 18 | 4.5 | 35 | 38 | 41 | 0.3 |
GA08-1301-05L | M16×1.5 LH | |||||||||||||||
GA10-1301-04R | M16×1.5 LH | G3/8" | 9 | 110 | 43 | 44 | 24.5 | 17 | 16 | 82 | 18 | 4.5 | 43.6 | 47.5 | 53.5 | 0.5 |
GA10-1301-05L | M16×1.5 RH |

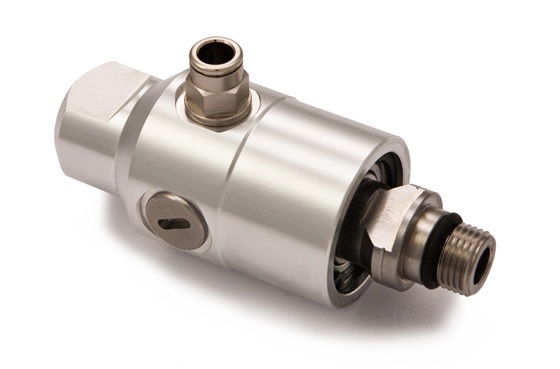

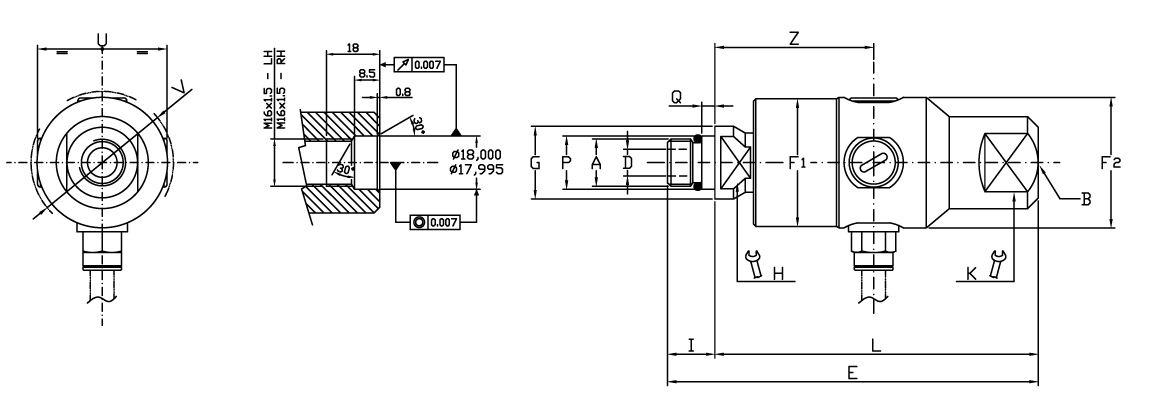

訂貨編碼 | 軸向連接 | |||||||||||||||
A | B | ?D | E | ?F1 | ?F2 | ?G | H | I | L | ?P | Q | U | ?V | Z | Kg | |
GA08-1301-04R | M16×1.5 RH | G1/4" | 5 | 108 | 34 | 34.4 | 24.5 | 17 | 16 | 92 | 18 | 4.5 | 35 | 38 | 41 | 0.3 |
GA08-1301-05L | M16×1.5 LH | |||||||||||||||
GA10-1301-04R | M16×1.5 LH | G3/8" | 9 | 125 | 43 | 44 | 24.5 | 17 | 16 | 109 | 18 | 4.5 | 43.6 | 47.5 | 53.5 | 0.5 |
GA10-1301-05L | M16×1.5 RH |
