技術特點:
●兩只寬大高精度軸承支撐,運轉平穩,軸承終身無需維護;
●高速高壓間隙密封結構,無密封圈接觸磨損,確保產品長期無故障運轉;
●較低的旋轉扭矩;
●采用液壓油膜結構,高速運轉時摩擦熱量較??;
●旋轉扭矩不受工作壓力和溫度的影響;
●轉速工作范圍廣,可在最高轉速可達6500RPM;
●排泄孔設計,防止泄漏至外部影響環境;
●能為客戶量身定制所需要的產品;

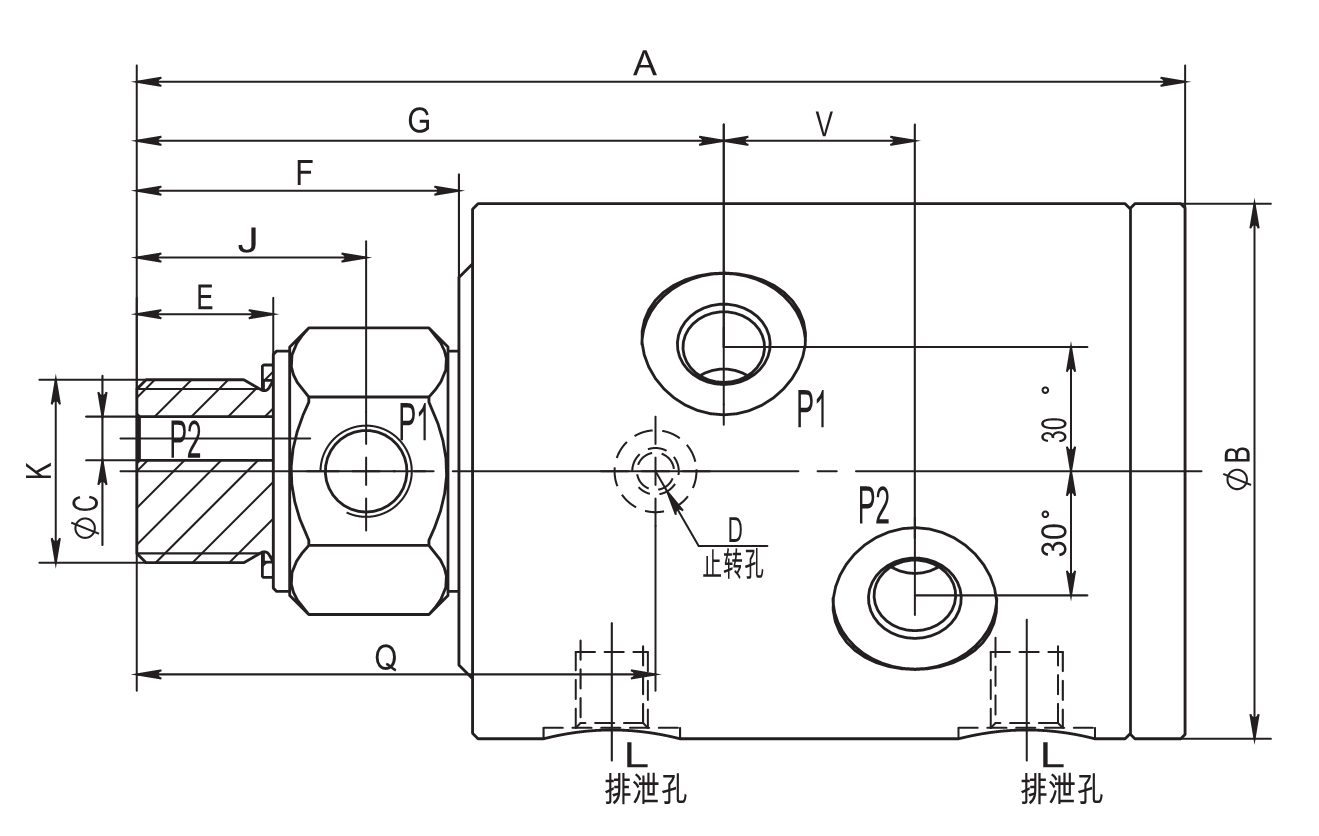

類型 | DN | 訂貨型號 | K | P | A | B | C | Q | D | E | F | G | V | J | L |
KT02 | 8 | KT02008.03 | G3/4"-RH | 2-G1/4" | 148 | 85 | 6 | 85 | M8 | 20 | 52 | 86 | 25 | 36.5 | 2-G1/8" |
10 | KT02010.03 | G1"-RH | 2-G3/8" | 192 | 98 | 8 | 95 | M8 | 25 | 59 | 107.5 | 35 | 42 | 2-G1/4" | |
15 | KT02015.03 | G1-1/4"-RH | 2-G1/2" | 229 | 98 | 12 | 107 | M8 | 25 | 71 | 127 | 45 | 48 | 2-G1/4" |

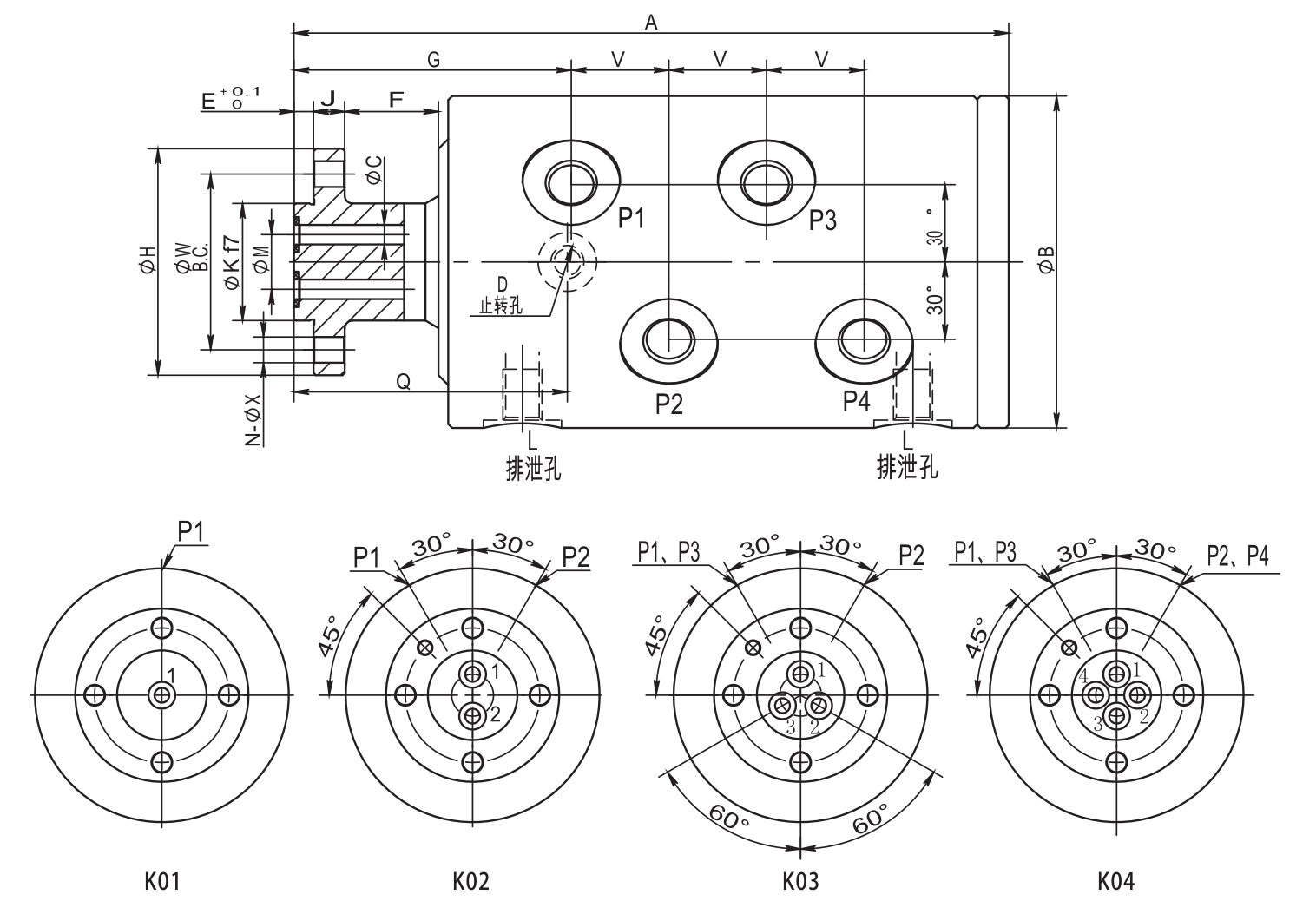

類型 | DN | 訂貨型號 | K | P | A | B | C | M | Q | D | E | F | G | V | H | J | L | N-X | W |
K01 | 8 | K01008 | 45 | G1/4" | 118 | 85 | 5 | / | 70 | M8 | 5 | 24 | 76 | / | 58 | 8 | 2-G1/8" | 4-6.6 | 45 |
10 | K01010 | 45 | G3/8" | 121 | 85 | 8 | / | 70 | M8 | 5 | 24 | 77.5 | / | 58 | 8 | 2-G1/8" | 4-6.6 | 45 | |
15 | K01015 | 45 | G1/2" | 128 | 85 | 12 | / | 72 | M8 | 5 | 24 | 82 | / | 58 | 10 | 2-G1/8" | 4-6.6 | 45 | |
K02 | 8 | K02008 | 30 | 2-G1/4" | 133 | 85 | 5 | 14 | 70 | M8 | 5 | 24 | 71 | 25 | 58 | 8 | 2-G1/8" | 4-6.6 | 45 |
10 | K02010 | 40 | 2-G3/8" | 182 | 98 | 8 | 20 | 85 | M8 | 5 | 32 | 97.5 | 35 | 75 | 12 | 2-G1/4" | 4-9 | 60 | |
15 | K02015 | 55 | 2-G1/2" | 227 | 115 | 12 | 25 | 100 | M12 | 5 | 36 | 120 | 40 | 95 | 15 | 2-G3/8" | 6-9 | 75 | |
20 | K02020 | 65 | 2-G3/4" | 250 | 135 | 16 | 30 | 105 | M12 | 5 | 37 | 126 | 50 | 115 | 15 | 2-G3/8" | 6-14 | 90 | |
25 | K02025 | 80 | 2-G1" | 274 | 165 | 20 | 42 | 105 | M12 | 5 | 44.5 | 127 | 76 | 155 | 15 | 2-G1/2" | 6-14 | 130 | |
K03 | 8 | K03008 | 30 | 3-G1/4" | 158 | 85 | 5 | 14 | 70 | M8 | 5 | 24 | 71 | 25 | 58 | 8 | 2-G1/8" | 4-6.6 | 45 |
10 | K03010 | 40 | 3-G3/8" | 217 | 98 | 8 | 20 | 85 | M8 | 5 | 32 | 97.5 | 35 | 75 | 12 | 2-G1/4" | 4-9 | 60 | |
15 | K03015 | 55 | 3-G1/2" | 267 | 115 | 12 | 25 | 100 | M12 | 5 | 36 | 120 | 40 | 95 | 15 | 2-G3/8" | 6-9 | 75 | |
K04 | 8 | K04008 | 30 | 4-G1/4" | 183 | 85 | 5 | 14 | 70 | M8 | 5 | 24 | 71 | 25 | 58 | 8 | 2-G1/8" | 4-6.6 | 45 |
10 | K04010 | 40 | 4-G3/8" | 252 | 98 | 8 | 20 | 85 | M8 | 5 | 32 | 97.5 | 35 | 75 | 12 | 2-G1/4" | 4-9 | 60 | |
15 | K04015 | 65 | 4-G1/2" | 307 | 125 | 12 | 32 | 100 | M12 | 5 | 36 | 119 | 40 | 105 | 15 | 2-G3/8" | 6-9 | 85 | |
K06 | 8 | K06008 | 125 | 6-G1/4" | 232 | 90 | 4 | 26 | 75.5 | 3-M8 | 12 | 7 | 65 | 22 | / | / | 2-G1/4" | 6-6.3 | 108 |
