結構特點:
平衡式密封設計
高精度金屬軸承自我支撐
多種密封組合適應不同工況

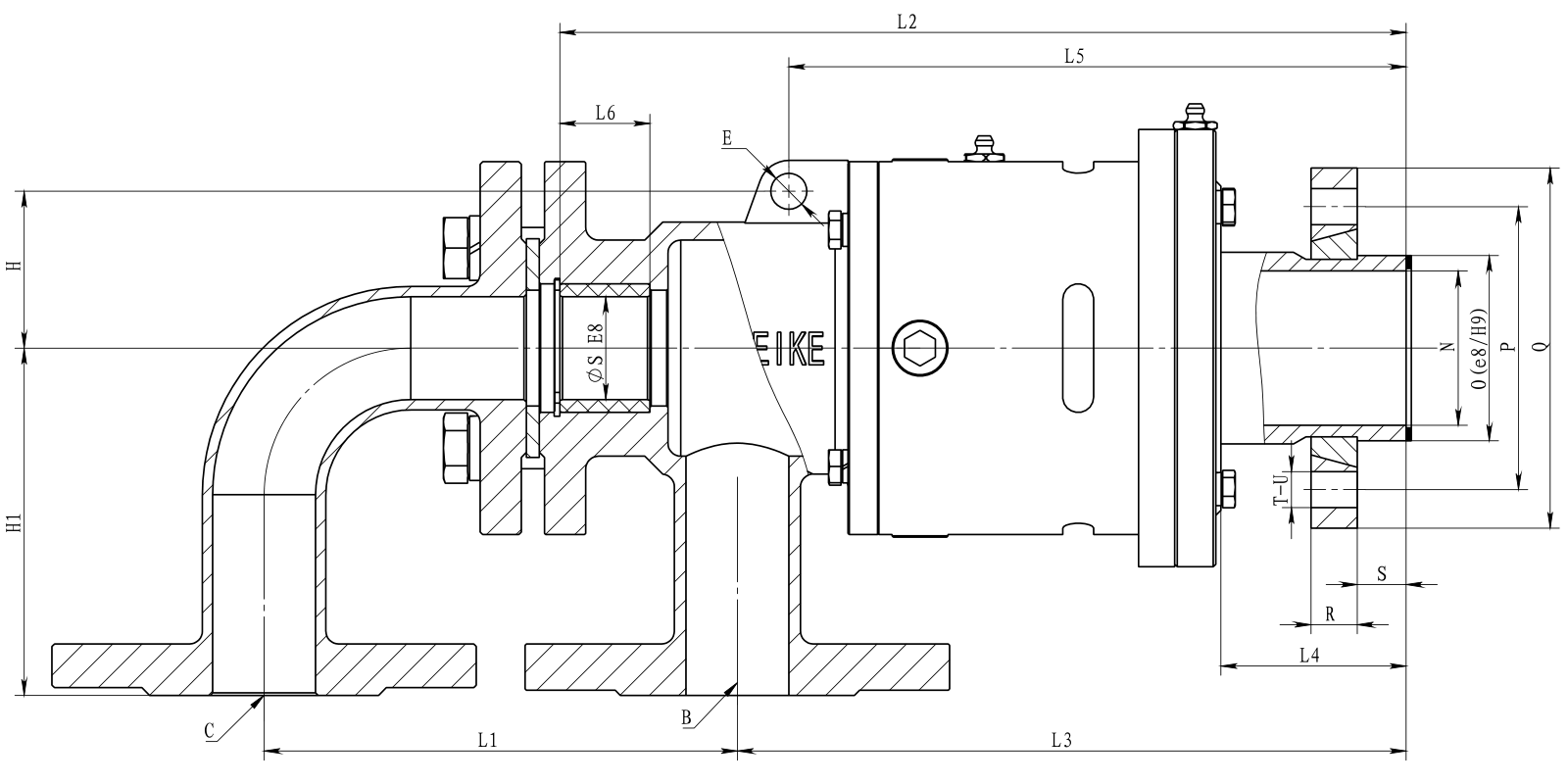

訂貨型號 | 尺寸 | B | C | D | E | H | H1 | L1 | L2 | L3 | L5 | L6 | N | O | P | Q | R | S | T-U |
RXHRFO-025 | 1" | DN20 PN16 | DN20 PN16 | 16 | / | / | / | 50 | 210 | 170 | / | 25 | 23 | 35 | 65 | 90 | 14 | 11 | 4-φ12 |
RXHRFO-032 | 1-1/4" | DN25 PN16 | DN25 PN16 | 20 | / | / | / | 121 | 259 | 216 | / | 30 | 32 | 45 | 75 | 100 | 16 | 13 | 4-φ14 |
RXHRFO-040 | 1-1/2" | DN32 PN16 | DN32 PN16 | 25 | / | / | / | 147 | 297 | 221 | / | 33 | 36 | 50 | 85 | 115 | 16 | 13 | 4-φ14 |
RXHRFO-050 | 2" | DN32 PN16 | DN32 PN16 | 32 | 10 | 47 | 120 | 145 | 290 | 230 | 215 | 35 | 45 | 60 | 95 | 125 | 16 | 16 | 4-φ14 |
RXHRFO-065 | 2-1/2" | DN40 PN16 | DN40 PN16 | 40 | 14 | 60 | 135 | 165 | 332 | 262 | 240 | 35 | 60 | 75 | 110 | 140 | 18 | 19 | 4-φ14 |
RXHRFO-080 | 3" | DN50 PN16 | DN50 PN16 | 56 | 14 | 75 | 155 | 180 | 400 | 325 | 305 | 40 | 75 | 90 | 130 | 160 | 20 | 23 | 6-φ14 |
RXHRFO-090 | 3-1/2" | DN65 PN16 | DN65 PN16 | 61 | 14 | 71 | 155 | 195 | 377 | 300 | 277 | 36 | 84 | 100 | 150 | 180 | 20 | 25 | 8-φ14 |
RXHRFO-100 | 4" | DN65 PN16 | DN65 PN16 | 73 | 14 | 82 | 155 | 195 | 405 | 332 | 282 | 36 | 96 | 120 | 160 | 200 | 22 | 25 | 8-φ16 |
RXHRFO-125 | 5" | DN80 PN16 | DN80 PN16 | 94 | 16 | 100 | 190 | 220 | 475 | 390 | 325 | 36 | 123 | 150 | 190 | 230 | 22 | 32 | 6-φ18 |
